POOLPAL USA specializes in creating solutions for unsolved problems in the pool & spa industry.  [email protected] 813.818.7079 Fax 877.825.POOL (7665)

Save Water, Save Time & Make More Money

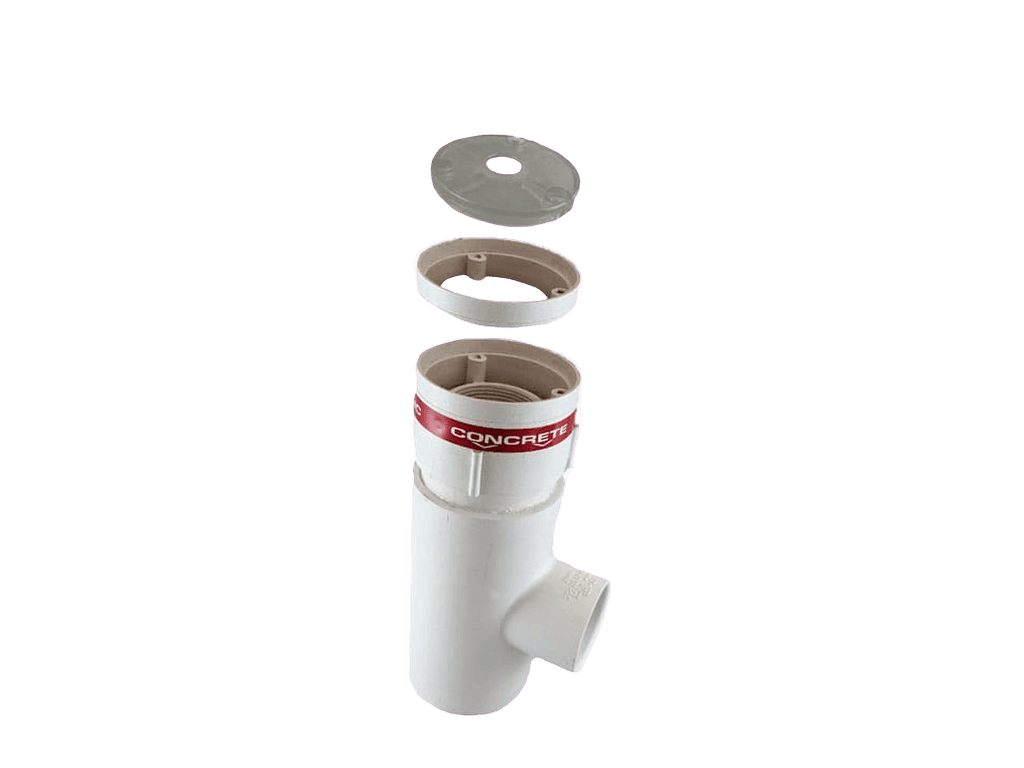

MICRO STREAM UNIVERSAL LED BUBBLER HOUSING:  MSLED-W (White) MSLED-G (Grey) for Concrete Pools &   MSLEDVF-W (White) or MSLEDVF-G (Grey) for Vinyl Liner & Fiberglass Pools:

  This is the SMALLEST bubbler housing available with a  3″ lens

***Part numbers for using the HAYWARD Colorlogic 320 : MSLED-W-HAY, MSLED-G-HAY,   MSLEDVF-W-HAY,  MSLEDVF-G-HAY



MSLEDVF-W (White) or MSLEDVF-G (Grey) for Vinyl Liner & Fiberglass Pools:

MSLED-RW & MSLED-RG – White & Grey extra Risers:

_____________________________________________



__________________

Winterizing Blow-out Plug – WBOP:



___________________________

1408c Fiberglass Gasket – PPU 1408c

-comparable to the Hayward 1408c Gasket

_________________________

Main Drain Side Port Wrench – MDPW

__________________________

INVISIBLE FITTINGS:

Resurface Return Fitting Extension – Escutcheon-less, screw-in:



Part numbers:  RPE1.5 EW – White, RPE1.5 EG – Grey

RPE1.5 EB Black,  RPE1.5 EC – CLEAR

_____________________

Invisible Resurface Return Fitting Extension – Escutcheon-less, slip:

Part numbers:  RPE-1.5 ESW – White, RPE-1.5 ESG – Grey

RPE-1.5 ESB Black,  RPE-1.5 ESC – CLEAR

______________________

INVISIBLE FITTINGS:

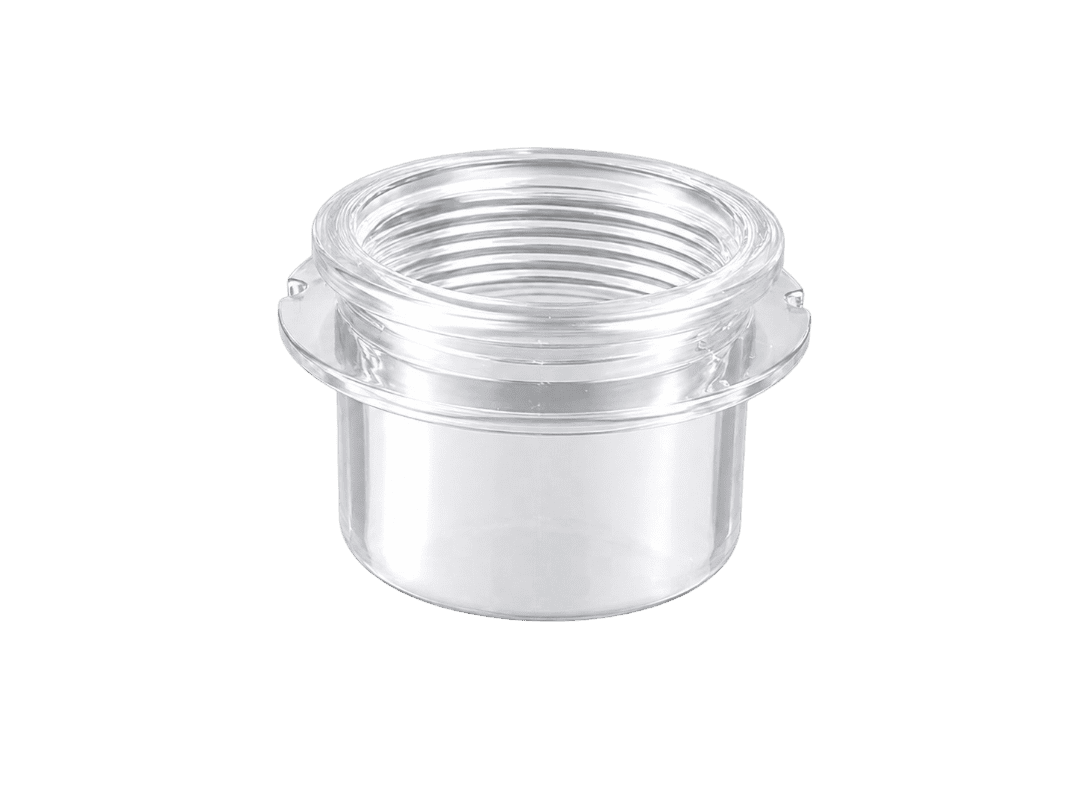

TRU-FIT ESCUTCHEONLESS:  Pool wall fitting, ACTUALLY fits 1 1/2″ FIP & 2″ Insider

  • Available in:  White, Grey, Black & CLEAR

_____________________________________

TRU-FIT:  Pool wall fitting, ACTUALLY fits 1 1/2″ FIP & 2″ Insider

  • Available in:  White, Grey, Black & Azure

______________________________________

PLASTER CAP – part # P-CAP

FOR PREPPING FITTINGS WHEN RESURFACING A POOL

-sold in Bags of 50



______________________________________

No-Brite: (White, Grey or Clear)

The No-Brite is an adapter fitting to retrofit an existing GloBrite LED light niche when a contractor or owner wants to use a threaded, niche-less light.

_______________________________________

PAK 1434: Extension for SP 1434 Jet Body; inside/outside threaded to fit Jet Body Bulkhead

___________________________

DCKJET:  Deck Jet Extension

Extend an existing deck jet

2 1/2″ x 2 1/2″ x 1 1/4″

Easily extend your existing, sunken deck jets with these Extenders.

___________________________

Repair an underground leak in 15 seconds!

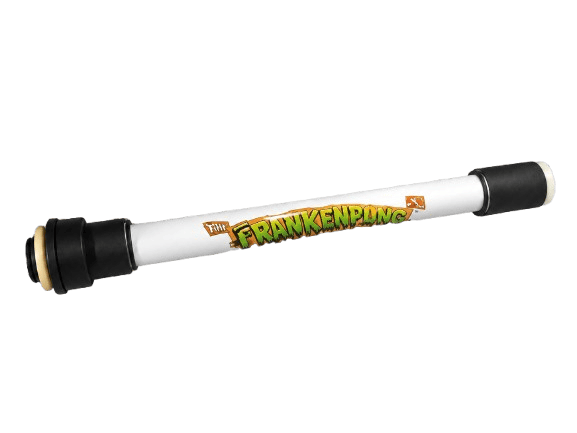

           Frankenplug Sr:

rpe 2

  • Use in 1022/1023/1408 return fittings
  • Repairs a leak less than 14″ into fitting
  • Length may be customized
  • Use with 1 1/2″ plumbing or ask about our 2″ conversion extension
  • Comes with a custom beauty ring “eyeball” cap
  • Also available for straight pipe
  • These are GREEN products; no need to drain any water.
  • EYEBALL CAPS ALSO AVAILABLE IN BLACK (EYE-1) OR GREY (EYE-2)

Part Numbers:
– RFS14  for 1022/1023/1408 fittings
– RFS14-S  for straight pipe

-RFS 02 for 2″ conversion extension

(Click link for Frankenplug brochure) Frankenplug brochure

Frankenplug Options:

4″ Frankenplug                                                Custom Eyeball

14″ Frankenplug Sr                                 Frankenplug & Coozie

fp

4″ Frankenplug & Eyeball                     Polaris Frankenplug

              Franken-Wrench                                       FPW 1/2″ Winterizing Plug

fp mini

Mini 3″ Frankenplug                    Custom Black & Grey Eyeballs



The Frankenplug underground Leak repair in 15 SECONDS:

Part Numbers:
– RFS 04  for 1022/1023/1408 fittings
– RFS 04-S  for straight pipe

-RFS 03 for 3″ Frankenplug Mini

-RFSP for Polaris Frankenplug

-RFSP SR for 14″ Polaris Frankenplug SR

  • Use in 1022/1023/1408 return fittings
  • Repairs a leak less than 4″ into fitting
  • Comes with a custom beauty ring “eyeball” cap
  • Also available for straight pipe & custom lengths upon request
  • These are GREEN products; no need to drain any water.
  • EYEBALL CAPS ALSO AVAILABLE IN BLACK (EYE-1) OR GREY (EYE-2)

       Frankenplug 2″ Extender (for 2″ plumbing)

————————————-————————

Patented- Aqua Locks Concrete Staples for concrete or foundation crack repair.  We use 1018 COLD ROLLED STEEL, threaded pin & rod made of B7 grade steel (threading is required per structural engineering specification for use with 2-part epoxy), tensioning bolt (B7 grade).



All kits come with 2-part epoxy & templates.  Pins are threaded to grip concrete/epoxy.

aqua locks kit 2 a locks ALocks 2

Part Numbers:  ALK-10 (5-4″ & 5-8″ staples), ALK-24 (12-4″ & 12-8″ staples) or ALK-10-XL (All 10 extra large staples 12″)

The BEST concrete staples PERIOD Each kit contains equal amounts of 2 different sized staples.

UNSOLICITED TESTIMONIAL:

INSTRUCTIONS:

_______________________________________

Resurfacing Return Extension:

3 rpe rpe 3

2 rpe 2rpe

  • When resurfacing a pool, simply thread into existing return fitting
  • Most 1 1/2″ LED lights fit
  • Full thread depth to allow vac ports and Polaris fittings to seat flush
  • Gives pool the traditional look customers expect
  • SCREW-IN or GLUE-IN VERSION available (fits both 1 1/2″ & 1″ plumbing)

Part Numbers:
– RPE-1.5T  for White screw-in,
RPE-1.5TS for White glue-in

– RPE-1.5G  for Grey screw-in, RPE-1.5GS  for Grey glue-in

– RPE-1.5B for Black screw-in, RPE-1.5BS for Black glue-in

– RPE-1.5A for Azure (light blue) screw-in

____________________________________

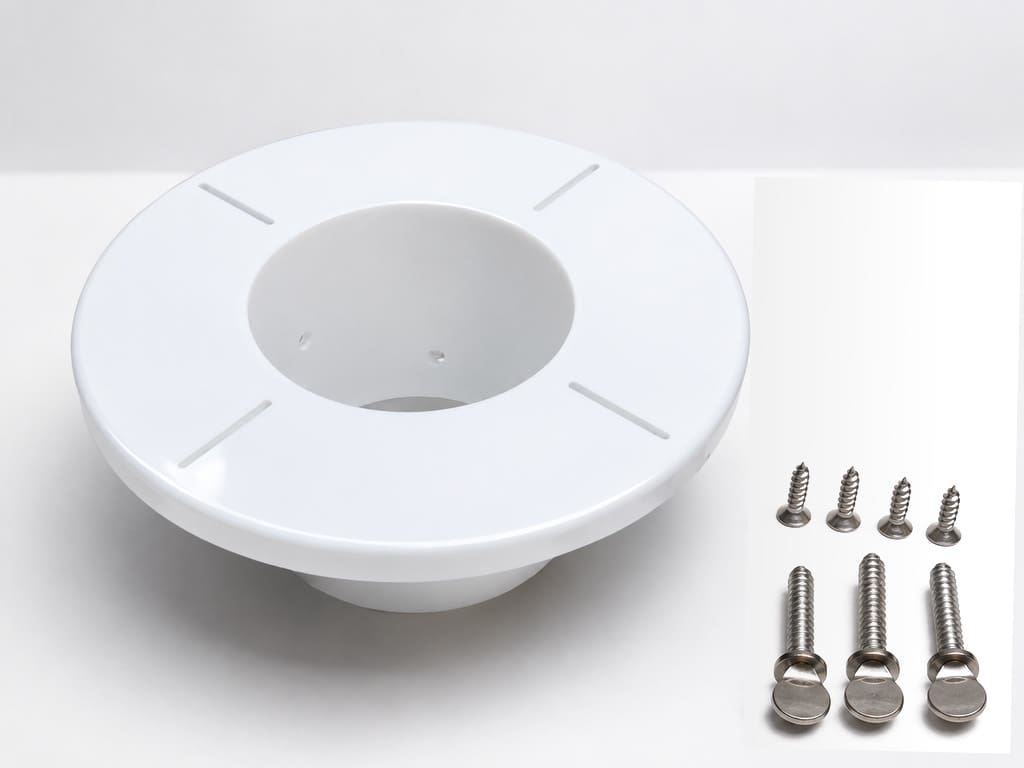

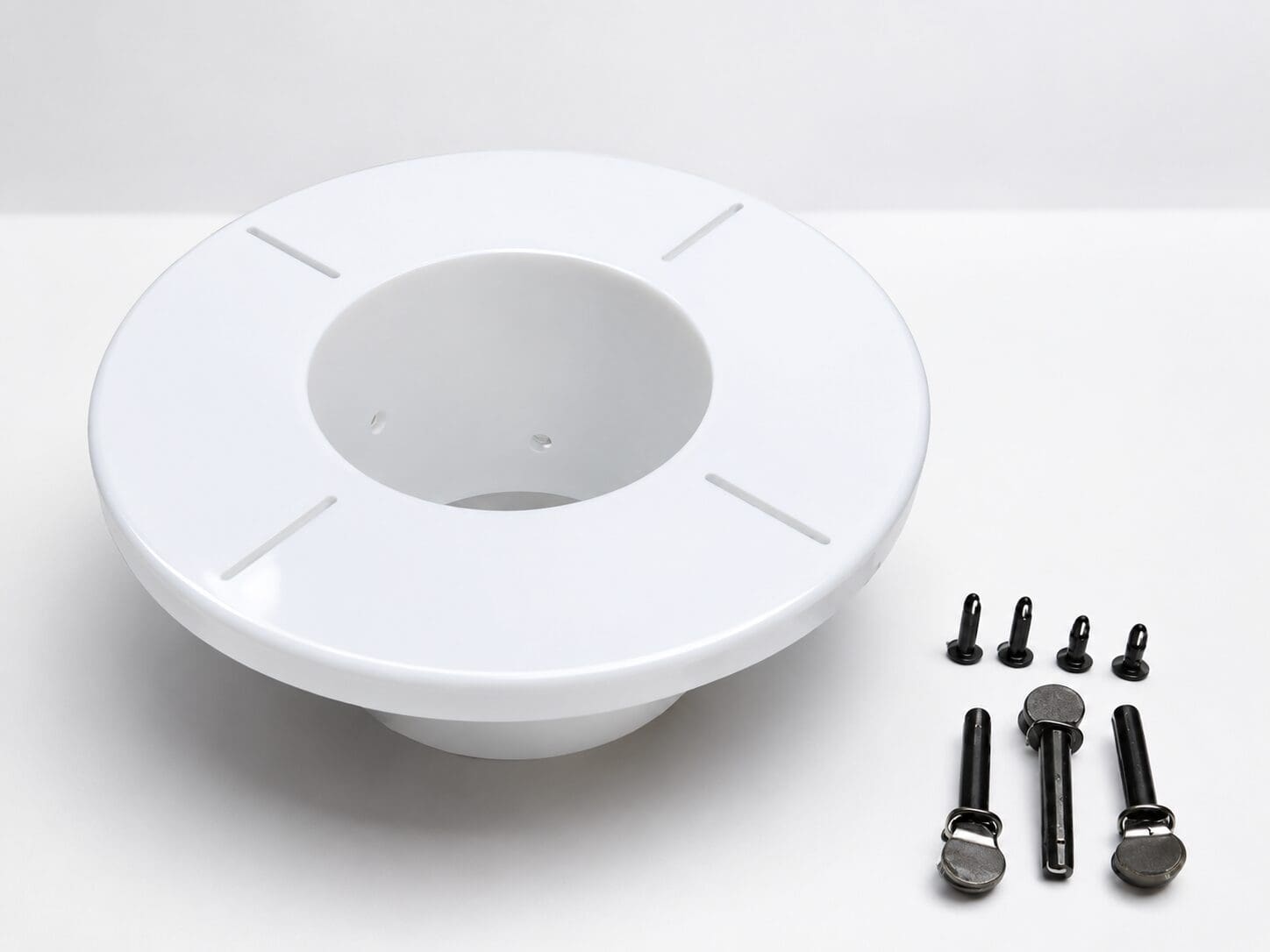

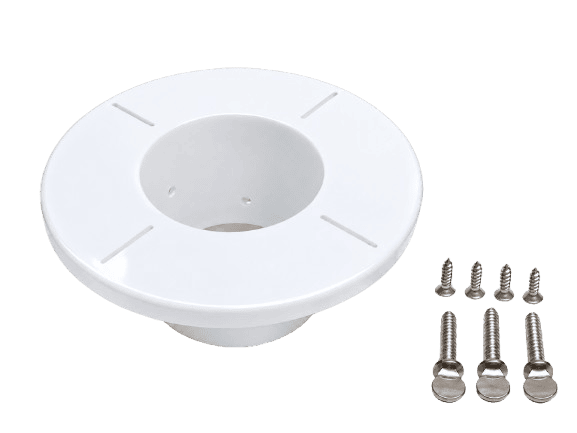

Main Drain Adaptor:

ET installing mda mda adv  mda black mda grey



Part Numbers MDA-1 white, MDA-2 black, MDA-3 grey

Screws broken off in main drain? Cover won’t fit your main drain?  All VGB residential main drain covers fit regardless of screw pattern. Set the adaptor in the main drain pot, secure with the 3 thumbscrews, then attach your VGB cover. Every Tech should have 2!  Installs in minutes, including cover!  Stainless steel hardware included: 3 thumbscrews; and a selection of 2 – 3/4″ & 2 – 1″ MD cover screws, depending on the model cover used.  This is a GREEN product; no need to drain any water to install!

_______________________________________

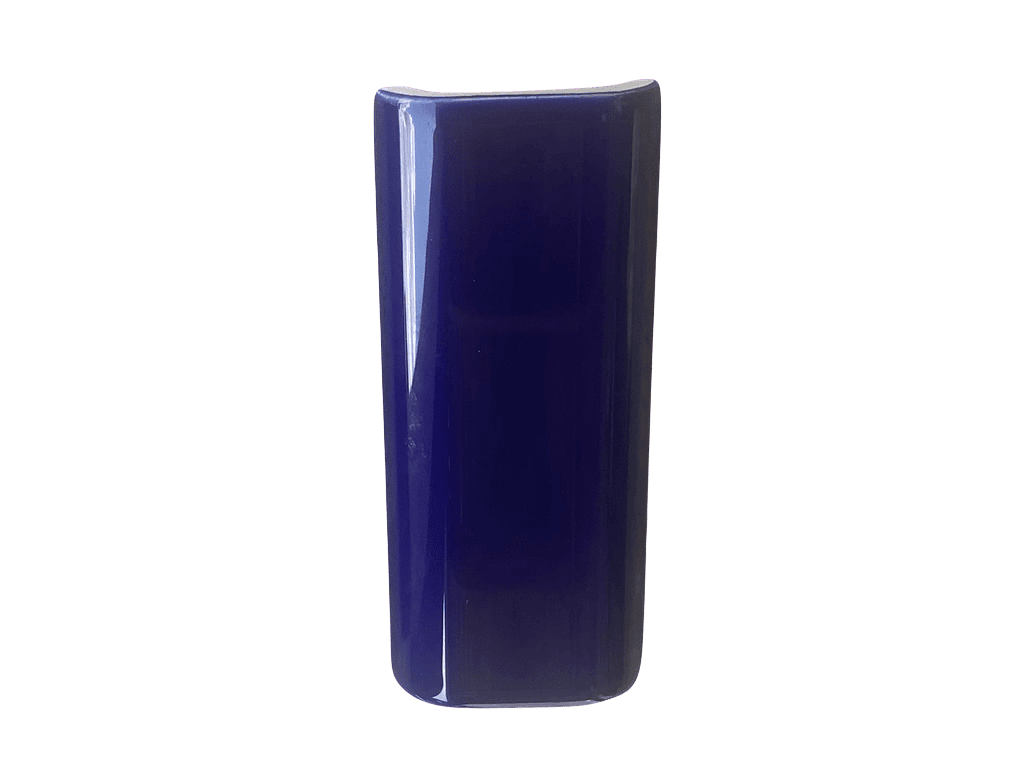

Double Bullnose Cap Tile 2 1/2″ x 6″:

Galaxy (or Colonial Blue – left)   Cobalt (right)



Part Numbers:
– DBCT Galaxy
– DBCT Cobalt

____________________________________

Pool Eyeball Seat Wrenches:

EYE-WR

EYE-WR Flat

eyeball eyeball parts eye wrench in use

Part Number EYE-WR (removes eyeball seat/assembly when installing Frankenplugs & Resurfacing Return Extensions- RPE’s)

  • Solid aluminum construction
  • Fits most 1 1/2″ threaded eyeball seats
  • Use 3/8″ ratchet (ratchet NOT included)

____________________________________

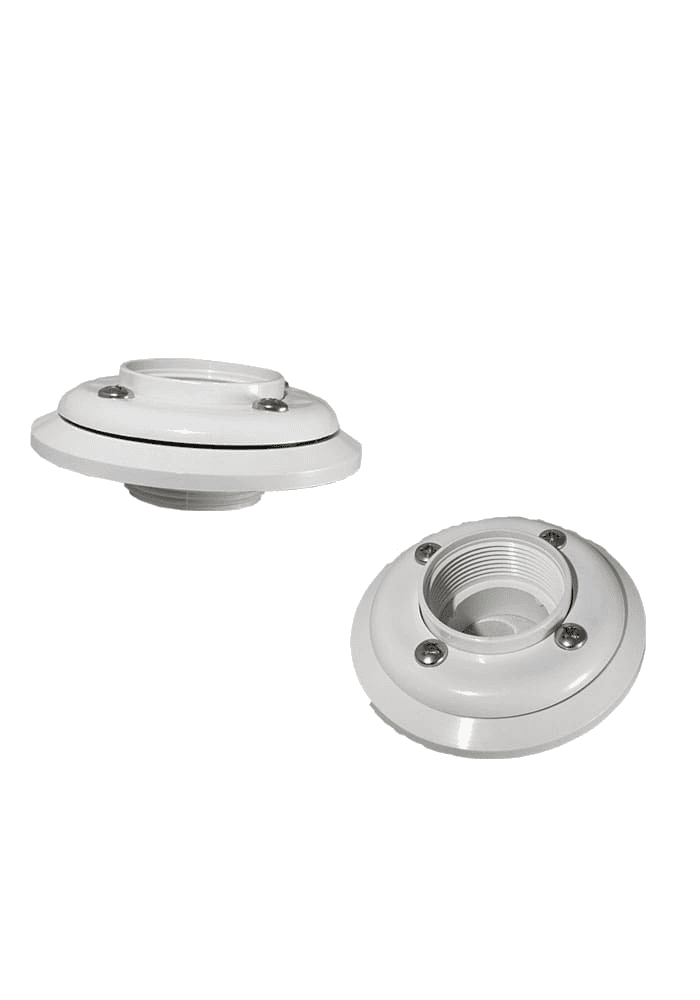

Vinyl Liner Compliant Concrete Conversion Return Extension:

Part Number:  VLCR-1

  • When converting a concrete pool to a vinyl liner, simply thread into existing return fitting (instead of cutting concrete!)
  • Converts in seconds! Saves lots of time & money!
  • Also available: Vinyl Liner Compliant Concrete Conversion Rope Anchors – VLCRA

_______________________________________

PUMP-OUT:

The PUMP-OUT is a fitting for vinyl liner pools; it can be used with our HPRV flush-mount Hydrostatic Pressure Relief Valve or as a fitting to vacuum out excessive water under the liner.  When used in conjunction with our HPRV, it can help prevent vinyl liners from floating.

______________________________________

Spa & Pool Fitting Sleeve “Franken-coozie”:

Coozie adv coozie coozie fp fp in coozie coozie inserted

Part Number: SPA-S for Hayward SP1434 & Waterway 211-5830

Repair cracked pool & spa jet body fittings instantly with the Fitting Sleeve “Franken-coozie”. Simply slide a Frankenplug Fitting Saver (Part # RFS 04 – sold separately) into a Fitting Sleeve (Part # SPA-S) and insert into jet body fitting; tighten locking nut to seal the leak. Install custom face plate to complete the repair. The job is complete in seconds! This is a GREEN product; no need to drain any water.

______________________________________

Spa Saver Kit:

spa saver parts spa saver instruct

Part Number: SPA-1 for Hayward SP1430, Waterway 1/4 turn, Waterway threaded jet bodies, CMP, Jacuzzi, Hydra Air and others for 1 1/2″ plumbing

Repair cracked spa jet body fittings:  We provide several nozzle sizes; simply choose the size that matches and glue the nozzle onto the threaded nipple or extended piping and complete instructions.  Install custom “eyeball” face plate to complete repair.  Length may be reduced or expanded with additional parts (not included).  This repair only takes minutes! This is a GREEN product; no need to drain any water.

______________________________________

Skimmer Saver 1 1/2″ & 2″:

sks sks insert

Part Numbers:  SKS-1.5 for 1 1/2″ skimmer  SKS-2 for 2″ skimmer

Repairs cracked skimmer & main drain lines in seconds, with this insert.  Available for both 1 1/2″ & 2″ plumbing.  Simply apply silicone sealant to rubber washer, insert & tighten nut (the leak is now sealed!). This is a GREEN product; no need to drain any water.

_______________________________________

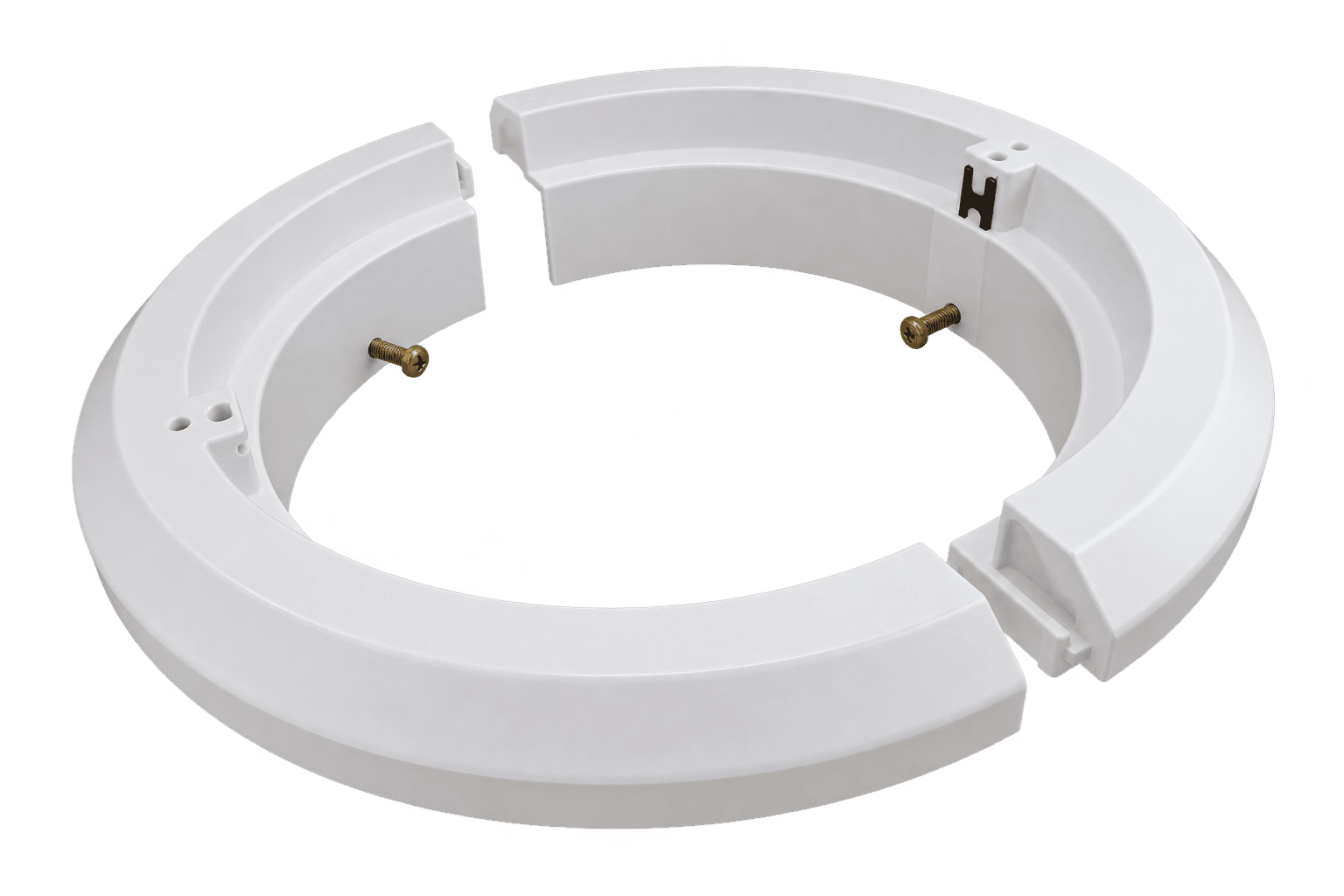

Universal Light Ring:

lr pic lr silver

 Part Numbers:  LAD-3 White, LAD-4 Silver

Reattach light with this 2-part ring; attaches with 3 stainless steel screws (from the inside, outward) in seconds!  No need to take the light apart or remove light fixture! The 2-parts clip together around the cord.  Unlike other light rings, it fits in most niches.  Use when light won’t reattach to niche or use as a mud-ring when resurfacing.  Can extend a Sealed Beam Niche to receive a standard light fixture.  (OD:  13″ x 3″) This is a GREEN product; no need to drain any water.

____________________________________________

“Third Hand” Light Repair Clamp Tool:

clamp clamp w light clamp folded up

Part Number LRT-1

How many Pool Guys does it take to change a light bulb?!  This aluminum light clamp will act as your “Third Hand” while you change a pool or spa light bulb.  No more will certain lights require 2 or 3 people!  Folds up nicely for storage.

___________________________________________

Pop-up Head Extension (for resurfacing):

puhe 3 puhe   puhe removal piecepuhe on stairspuhe instal

Part Numbers: PUHE-1 White, PUHE-2 Grey, PUHE-3 Azure (Light Blue)

Is prepping a pool for resurfacing slowing you up?  Use our quick-prep extensions for pop-up heads.  Simply attach with an adhesive, mud over and pull away top when done!  If your pop-up head is over-sized, simply peel away the inside section (see 3rd photo of Azure/Blue extension).

____________________________________________

Venturi Extension Overlay:

Before                                                        After

veo before veo after veo parts

veo bottom veo unscrewed

Part Numbers:
– VEO-W for white

– VEO-G for Grey
– VEO-T for tan

The Venturi Extension Overlay (VEO) is used when installing thin pavers/coping where there is an existing Venturi.  The Venturi Overlay screws into the existing Venturi stem, extending the Venturi to the new deck level.  No more ugly, unfinished edges around the Venturis!

_____________________________________________

36″ Commercial Shower Chain Repair Kit:

shower chain kit

Part Number: SCK-1

Most states require by code a shower chain for a commercial pool/beach shower.  This is the only place to buy a kit; the only other option is to buy the whole valve.  Problem solved, and a much cheaper option!
____________________________________________

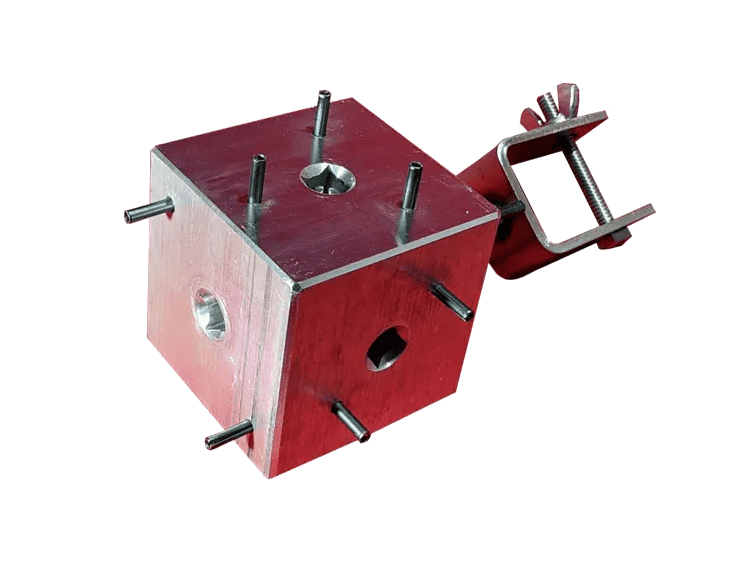

FOR POOL TOOLS, visit the following link for Multi-Tork:

https://multi-tork.com/products/

____________________________________________

PLEASE REQUEST THESE PRODUCTS FROM YOUR LOCAL POOL SUPPLIER.
